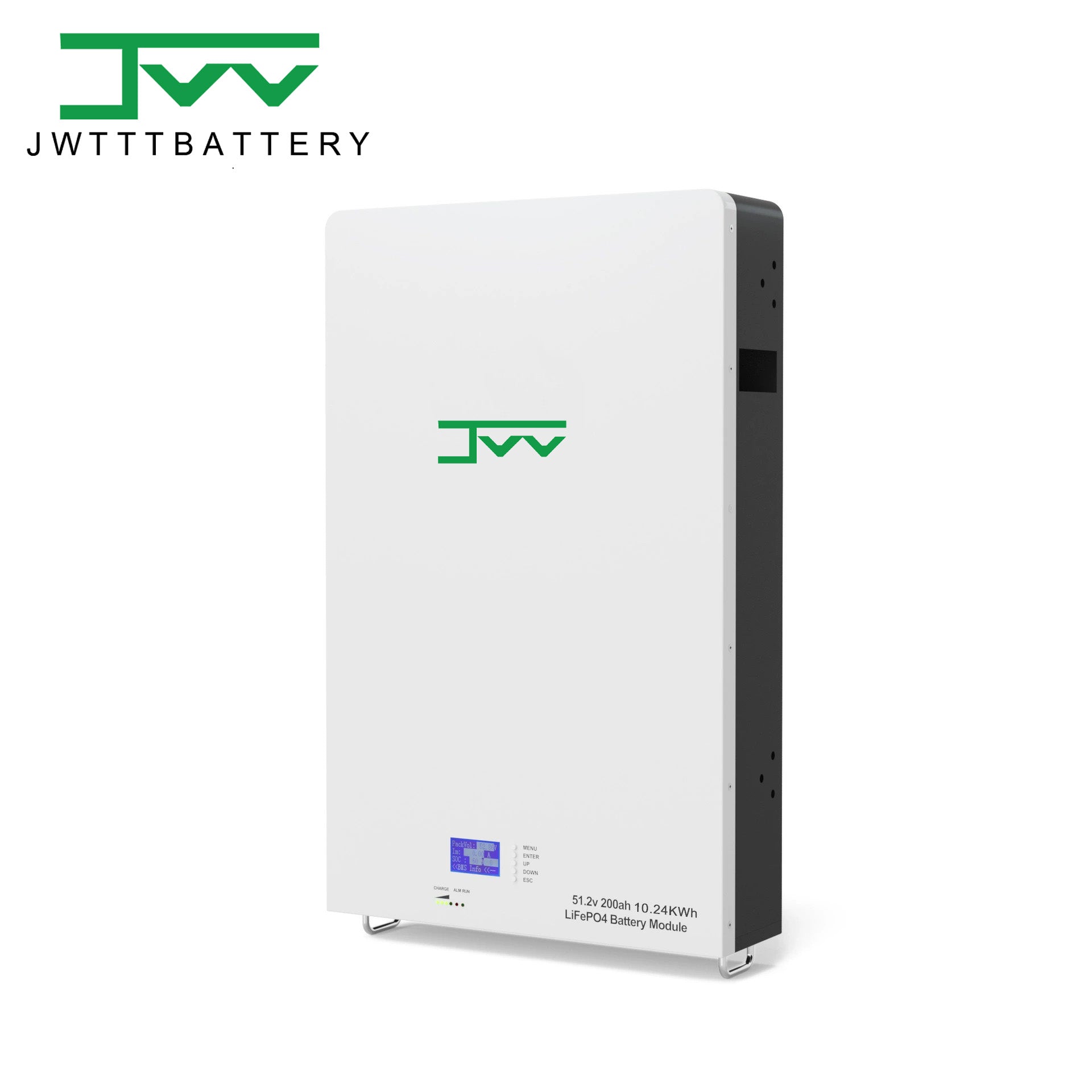

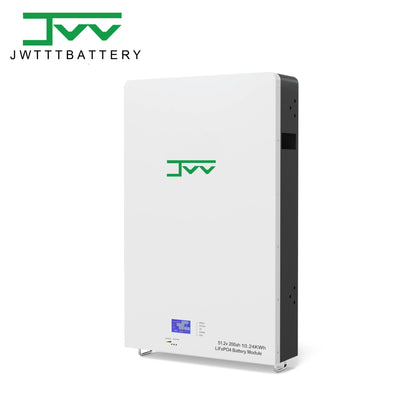

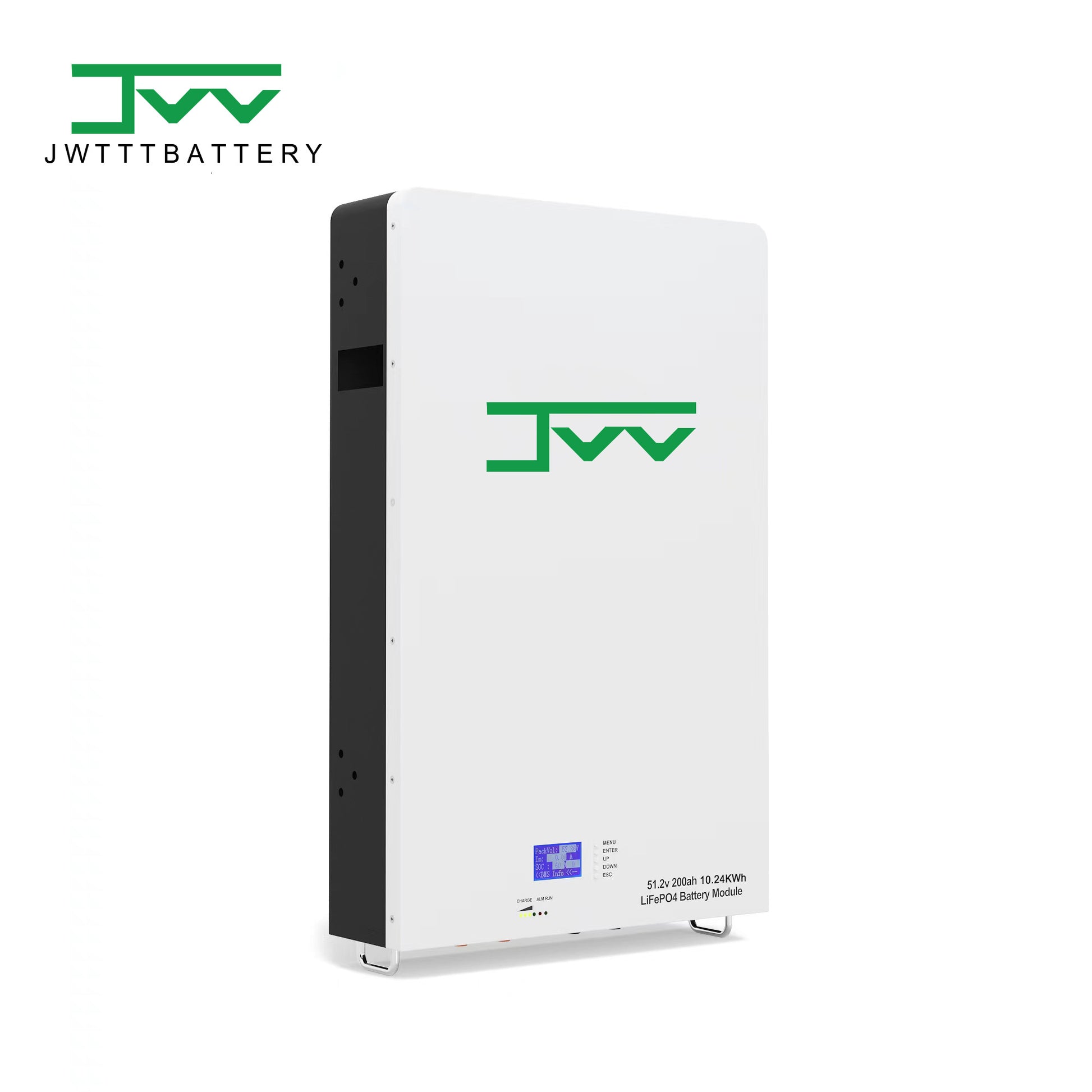

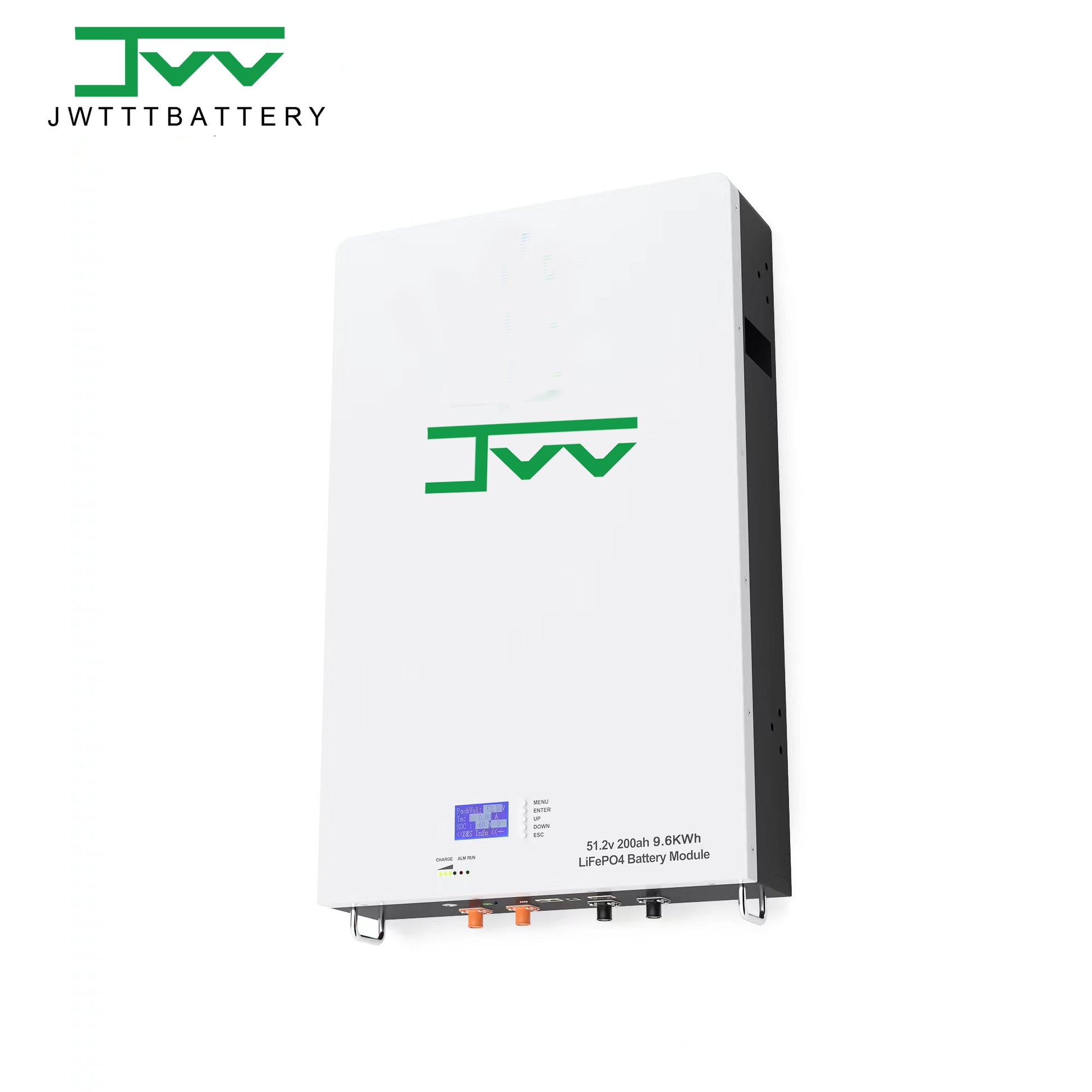

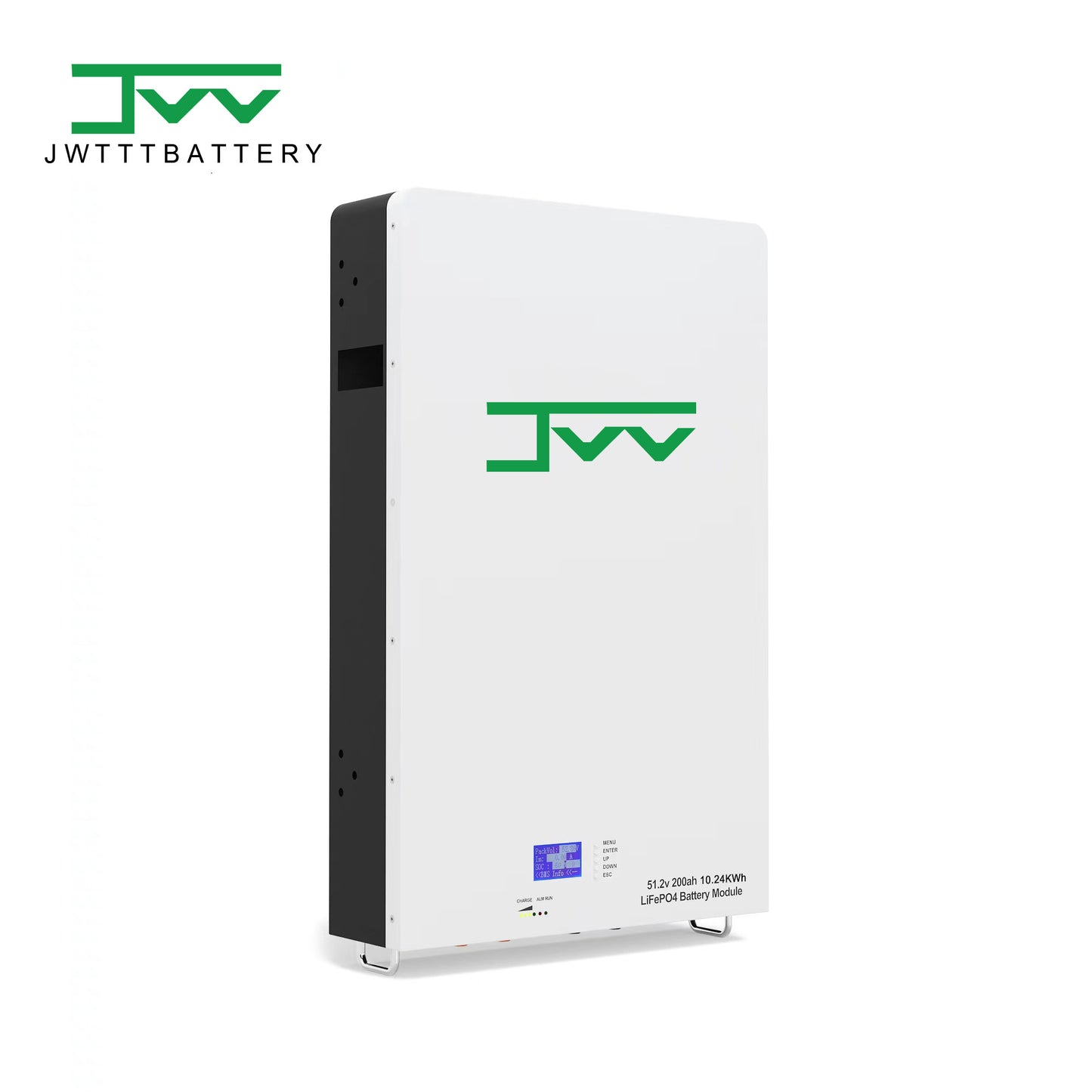

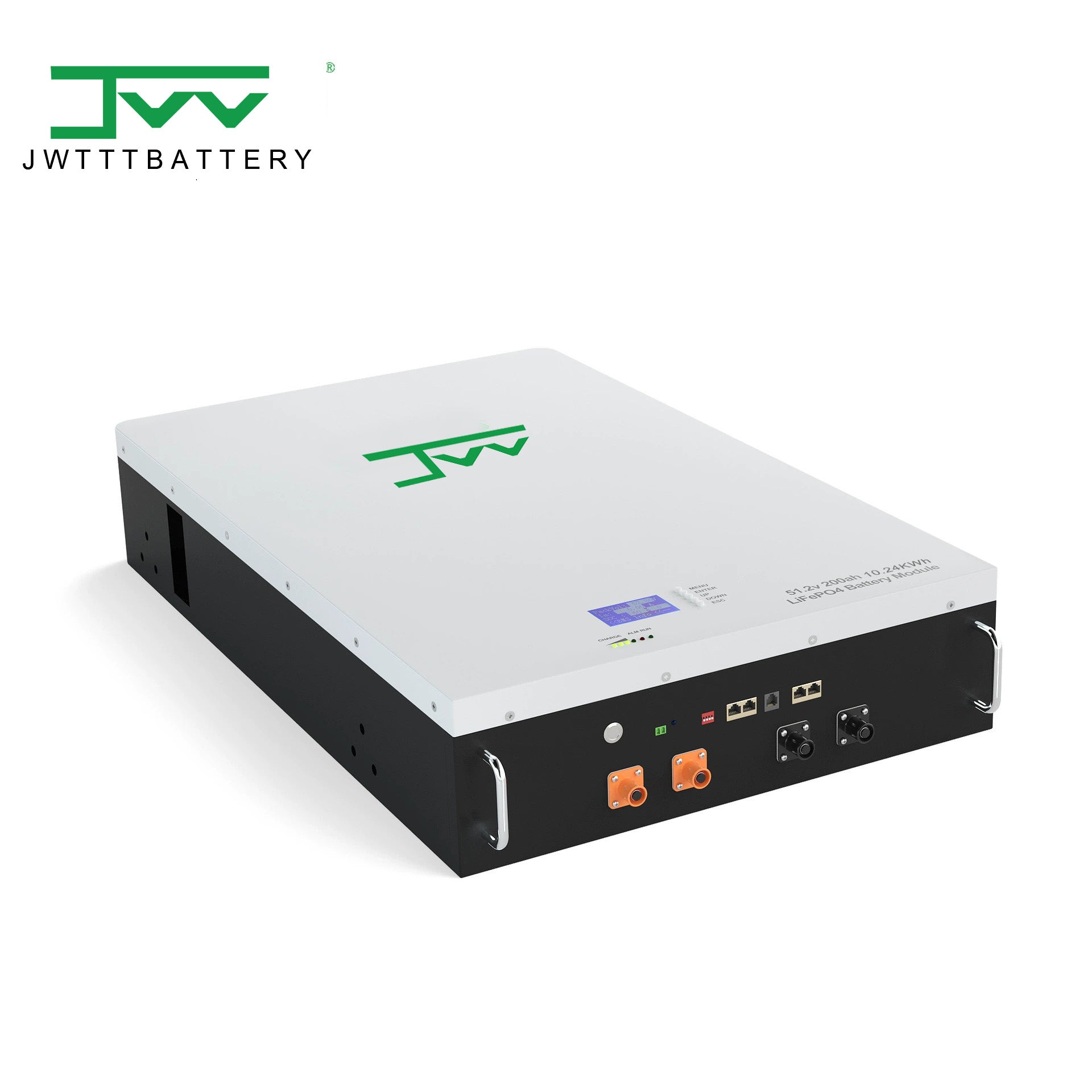

Wall-mounted energy storage battery 51.2V200AH

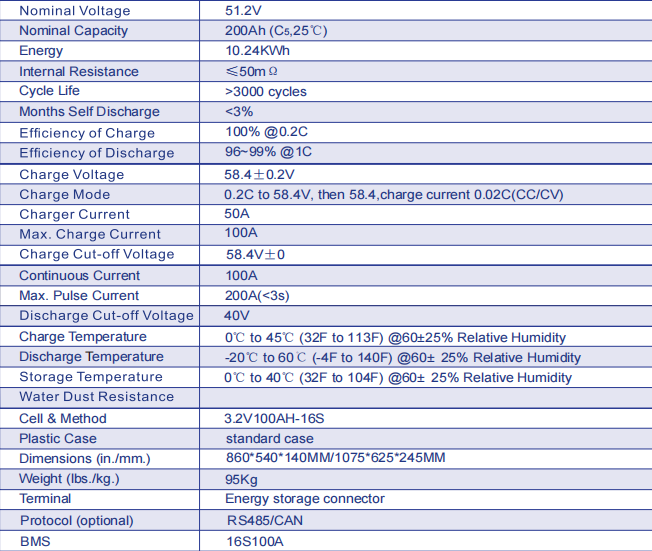

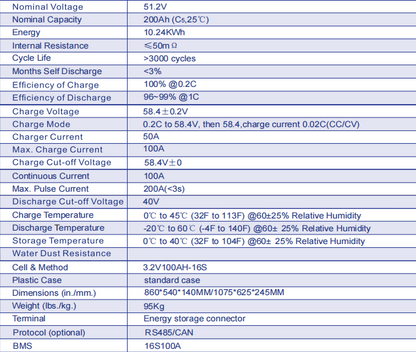

Nominal Voltage
51.2V
Nominal Capacity
200Ah(C5,25℃)
Energy
10.24Kh
Internal Resistance
≤50m0
Cycle Life
>3000 cycles
Months Self Discharge
<3%
Efficiency of Charge
100%@0.2C
Efficiency of Discharge
9699%@1C
Charge Voltage
58.4±0.2V
Charge Mode
0.2C to 58.4V,then 58.4,charge current 0.02C(CC/CV)
Charger Current
50A
Max.Charge Current
100A
Charge Cut-off Voltage
58.4V±0
Continuous Current
100A
Max.Pulse Current
200A(<3s)
Discharge Cut-off Voltage
40V
Charge Temperature
0℃to45℃(32Fto113F)@60±25%Relative Humidity
Discharge Temperature
-20℃to60C(←4Fto140F@60±25%Relative Humidity
Storage Temperature
0℃to40℃(32Fto104F)@60±25%Relative Humidity
Water Dust Resistance
Cell Method
3.2V100AH-16S
Plastic Case
standard case
Dimensions (in./mm.)
860*540*140MMW1075*625*245MM
Veight(bs.kg)】
95Kg
Temminal
Energy storage connector
Protocol (optional)
RS485/CAN
BMS
16S100A
