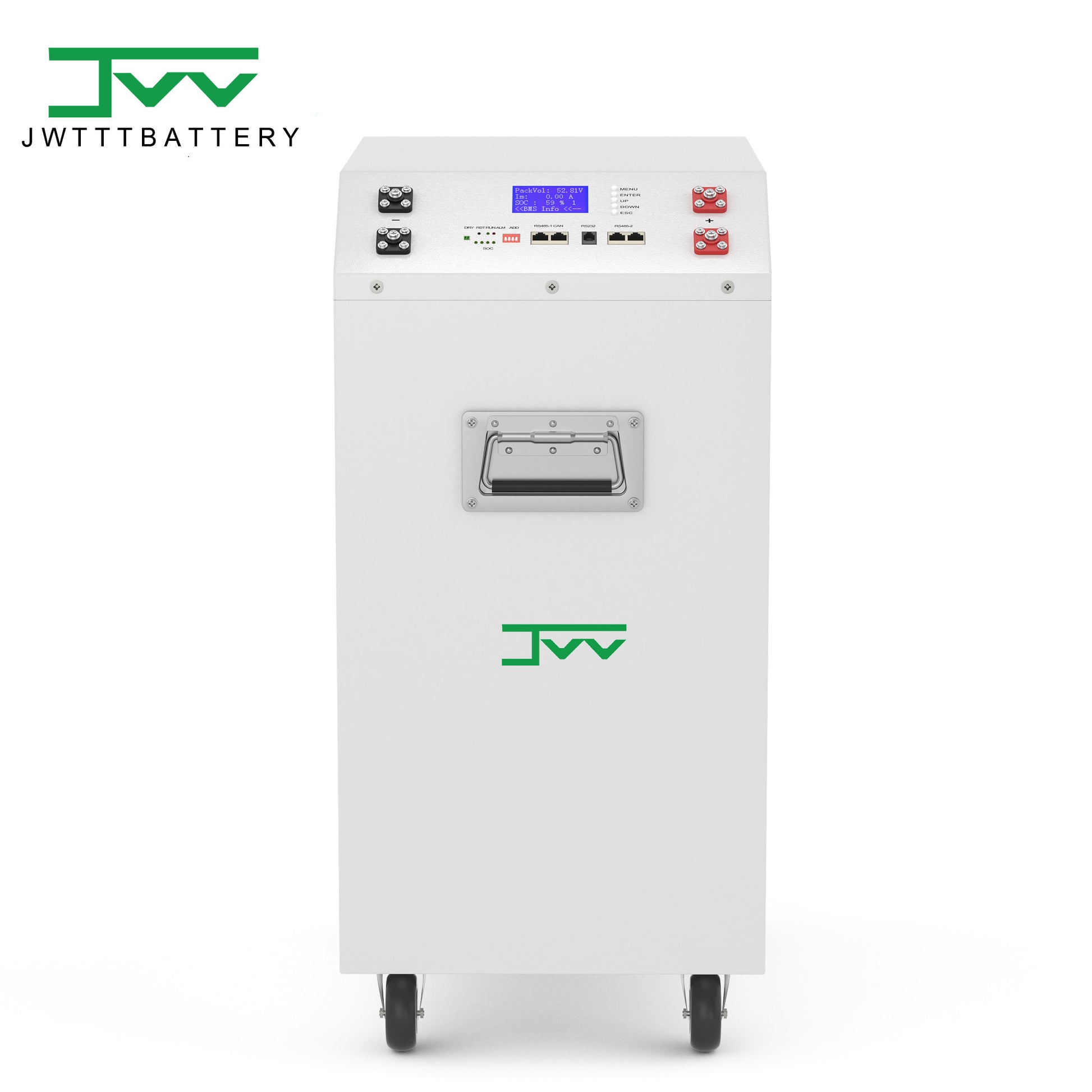

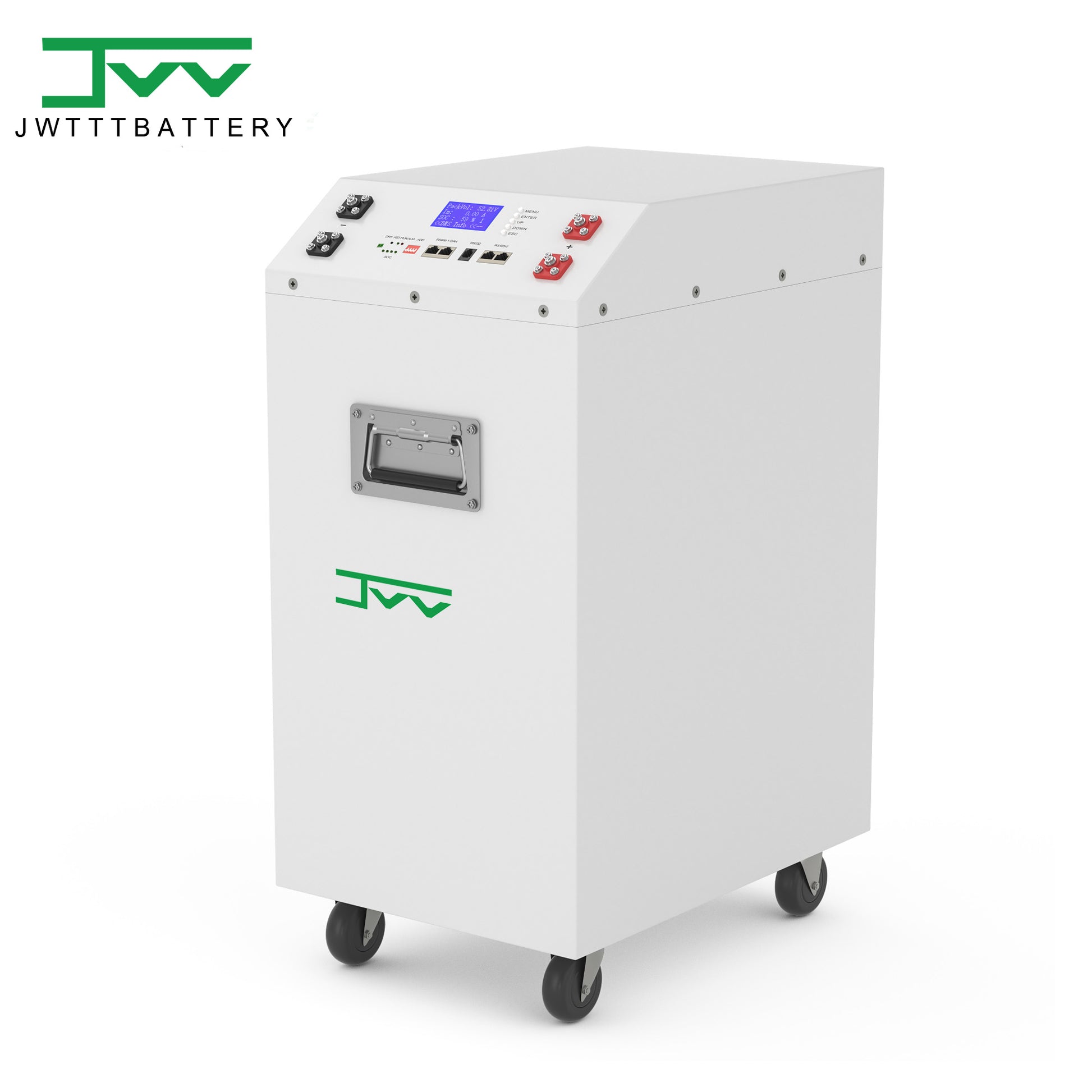

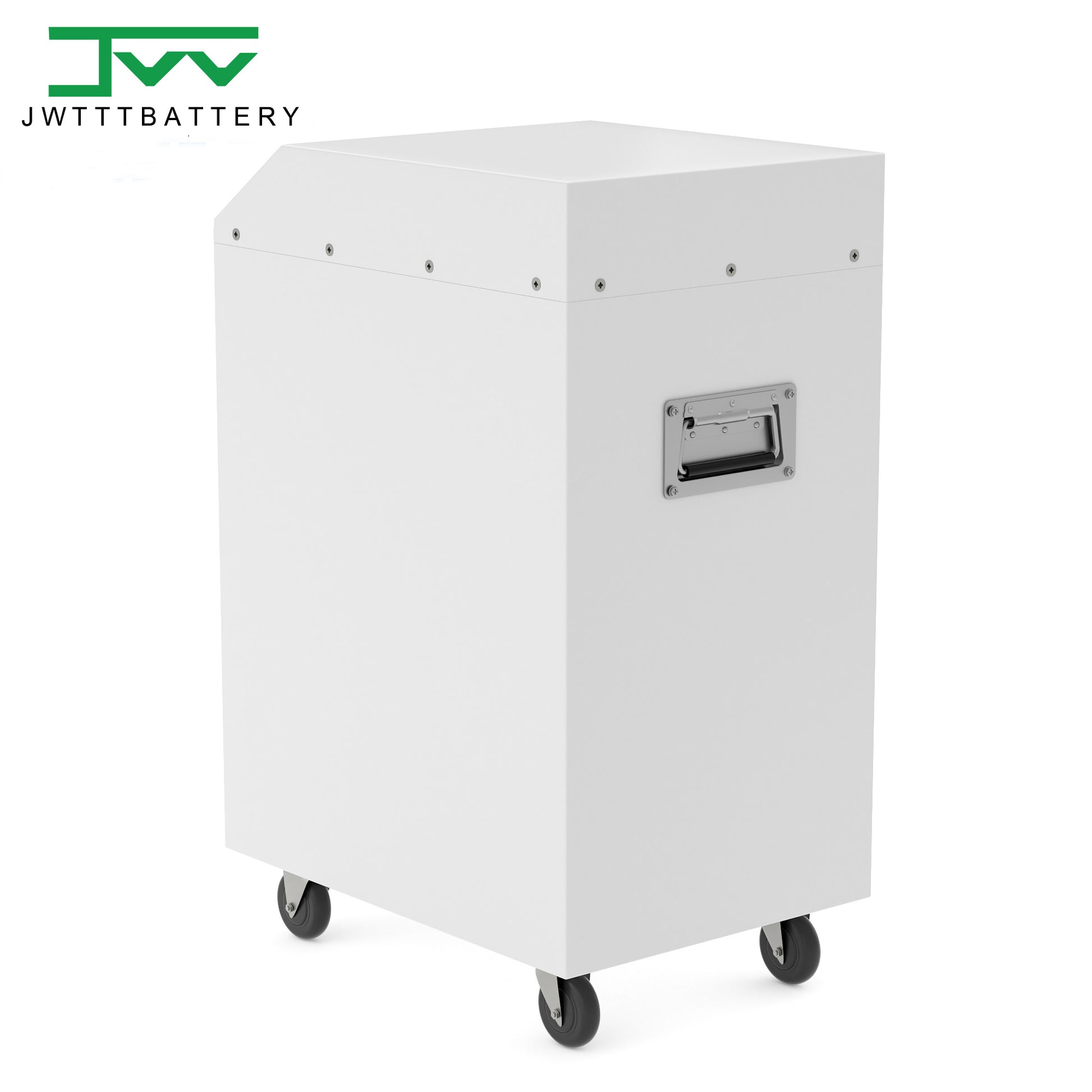

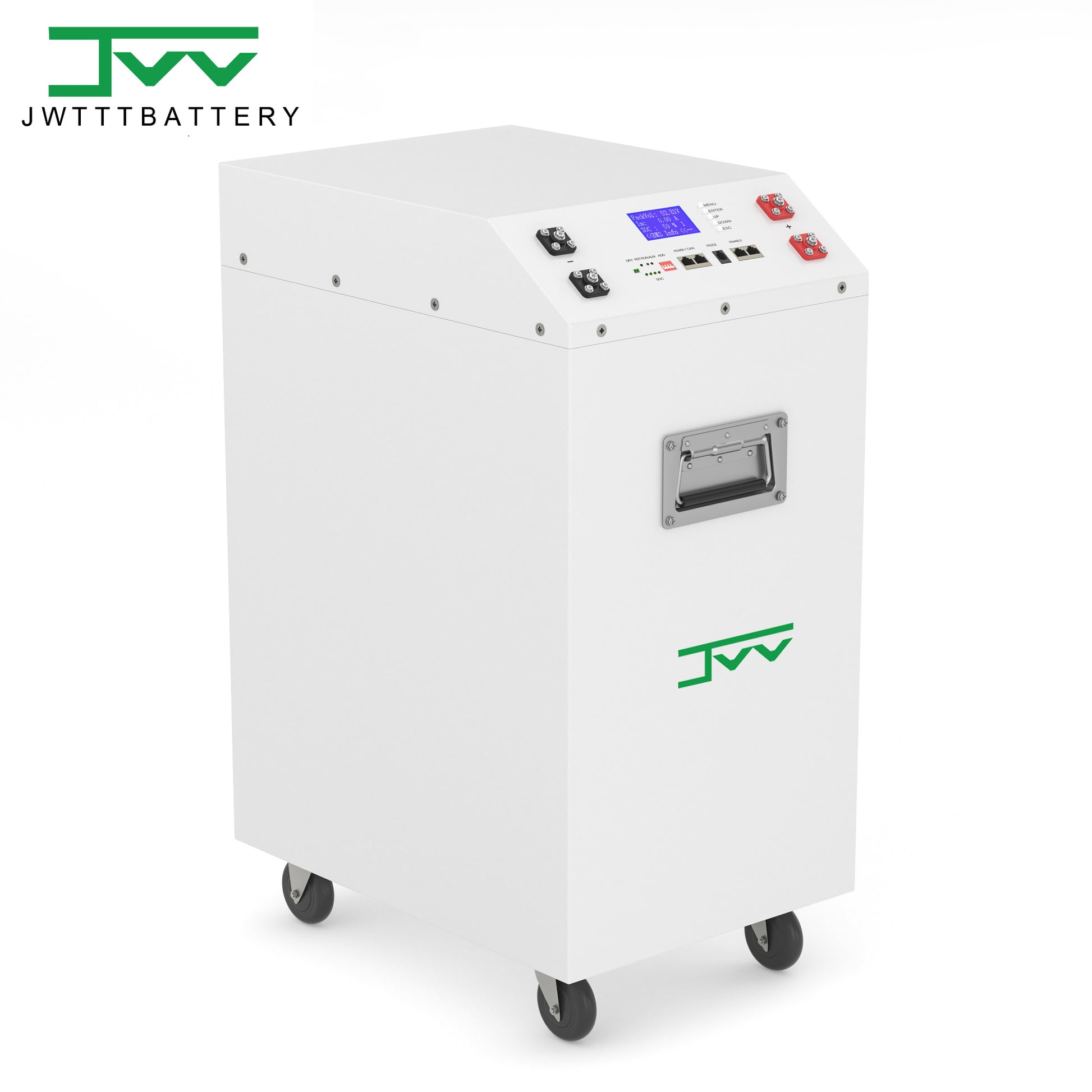

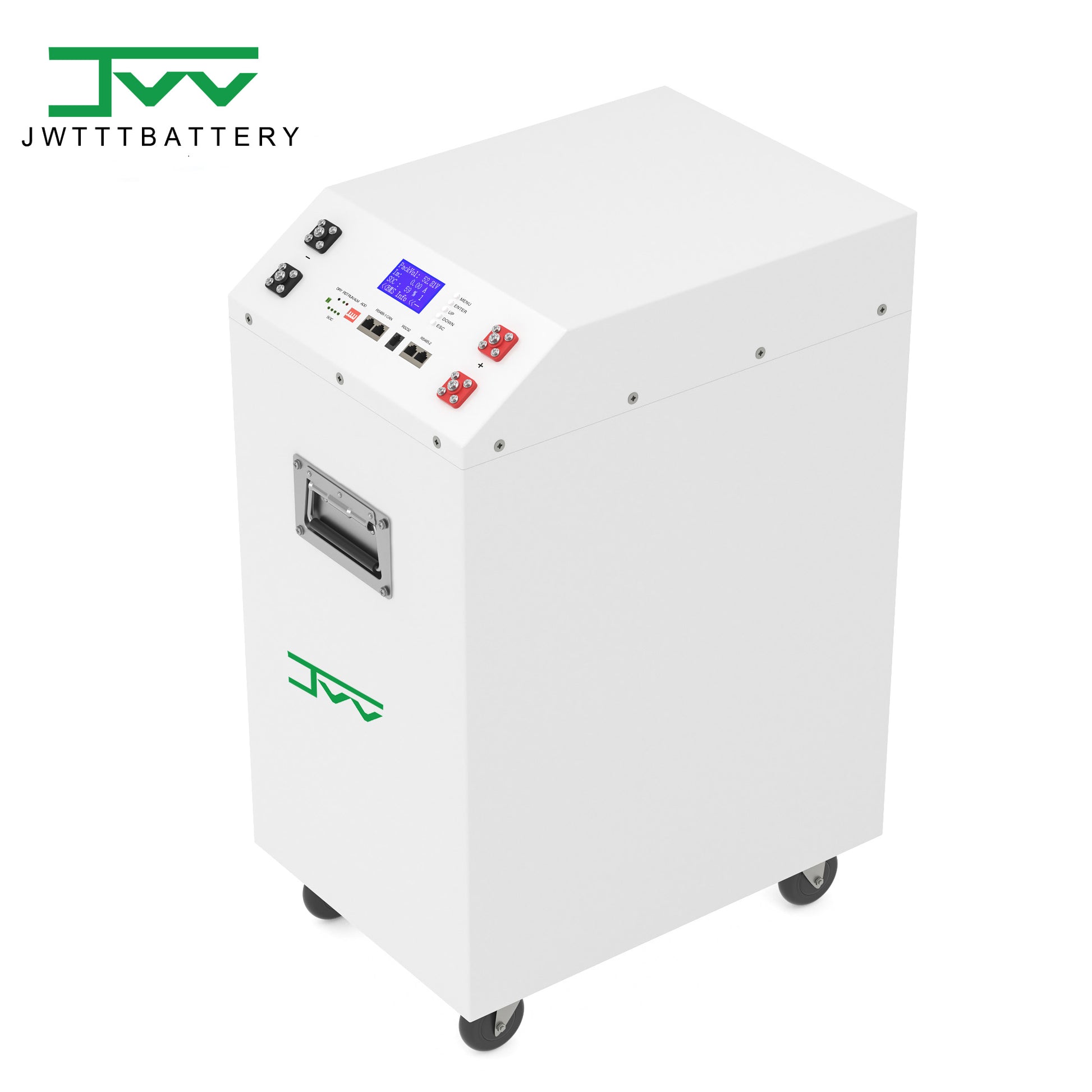

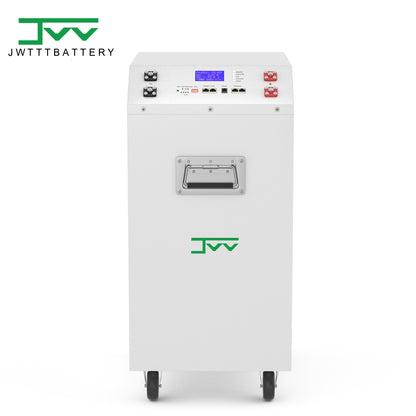

Vertical roller energy storage battery 51.2V 400AH

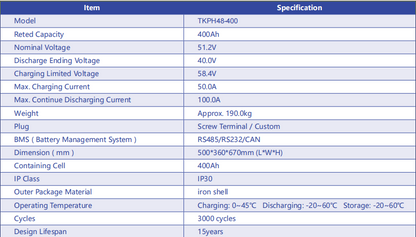

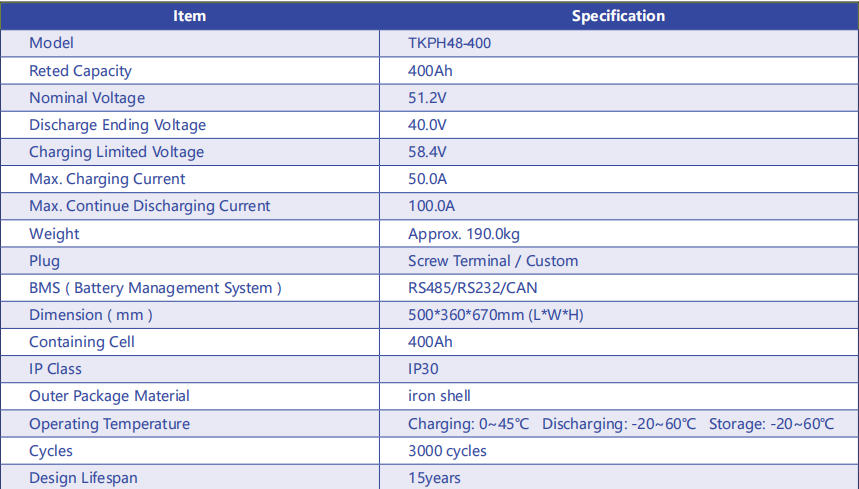

Specification
Model
TKPH48-400
Reted Capacity
400Ah
Nominal Voltage
51.2V
Discharge Ending Voltage
40.0V
Charging Limited Voltage
58.4V
Max.Charging Current
50.0A
Max.Continue Discharging Current
100.0A
Weight
Approx.190.0kg
Plug
Screw Terminal Custom
BMS(Battery Management System
RS485/RS232/CAN
Dimension(mm
500*360*670mm(L*W*H)
Containing Cell
400Ah
IP Class
1P30
Outer Package Material
iron shell
Operating Temperature
Charging:0~45℃Discharging:-20~60℃Storage:-20~60℃
Cycles
3000 cycles
Design Lifespan
15years
