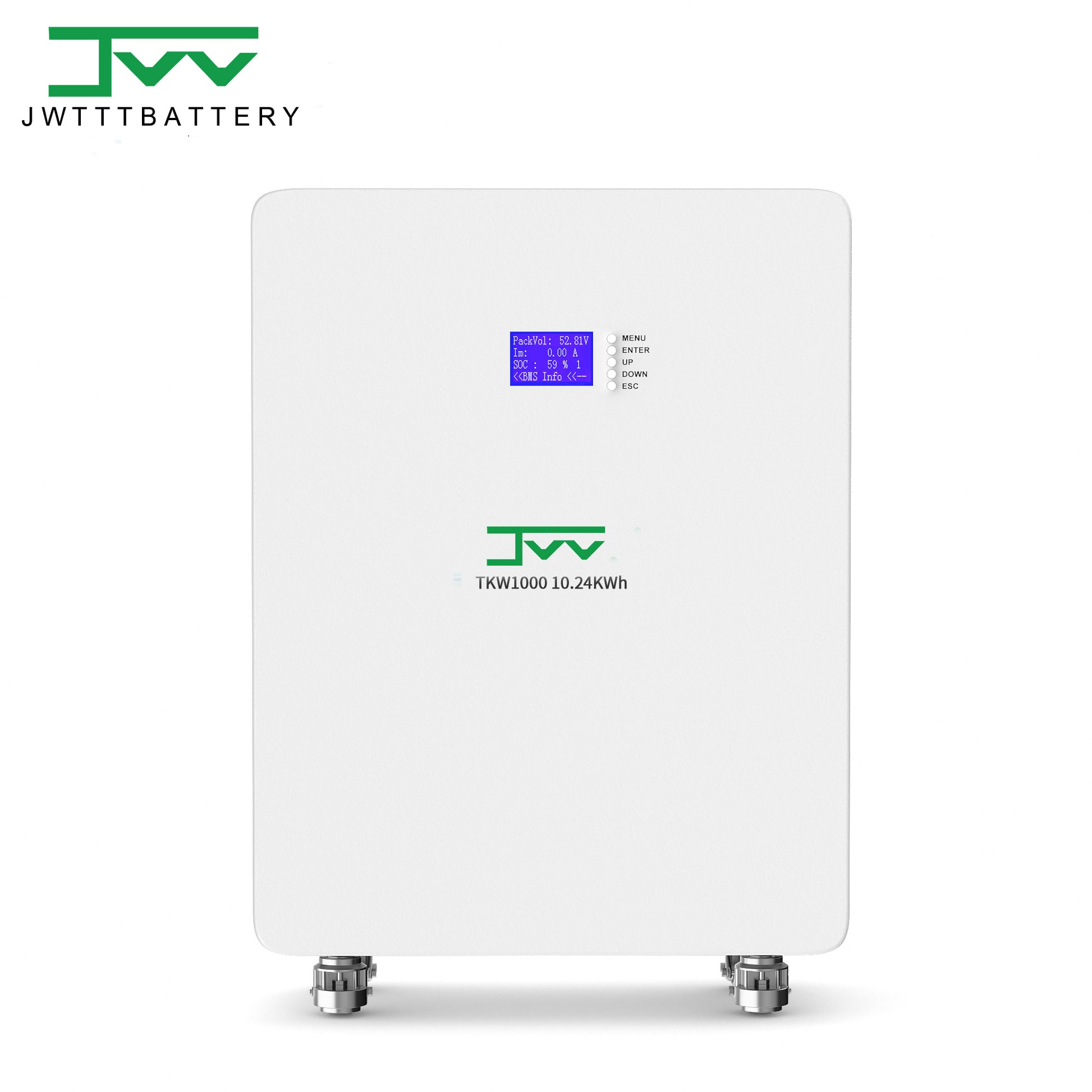

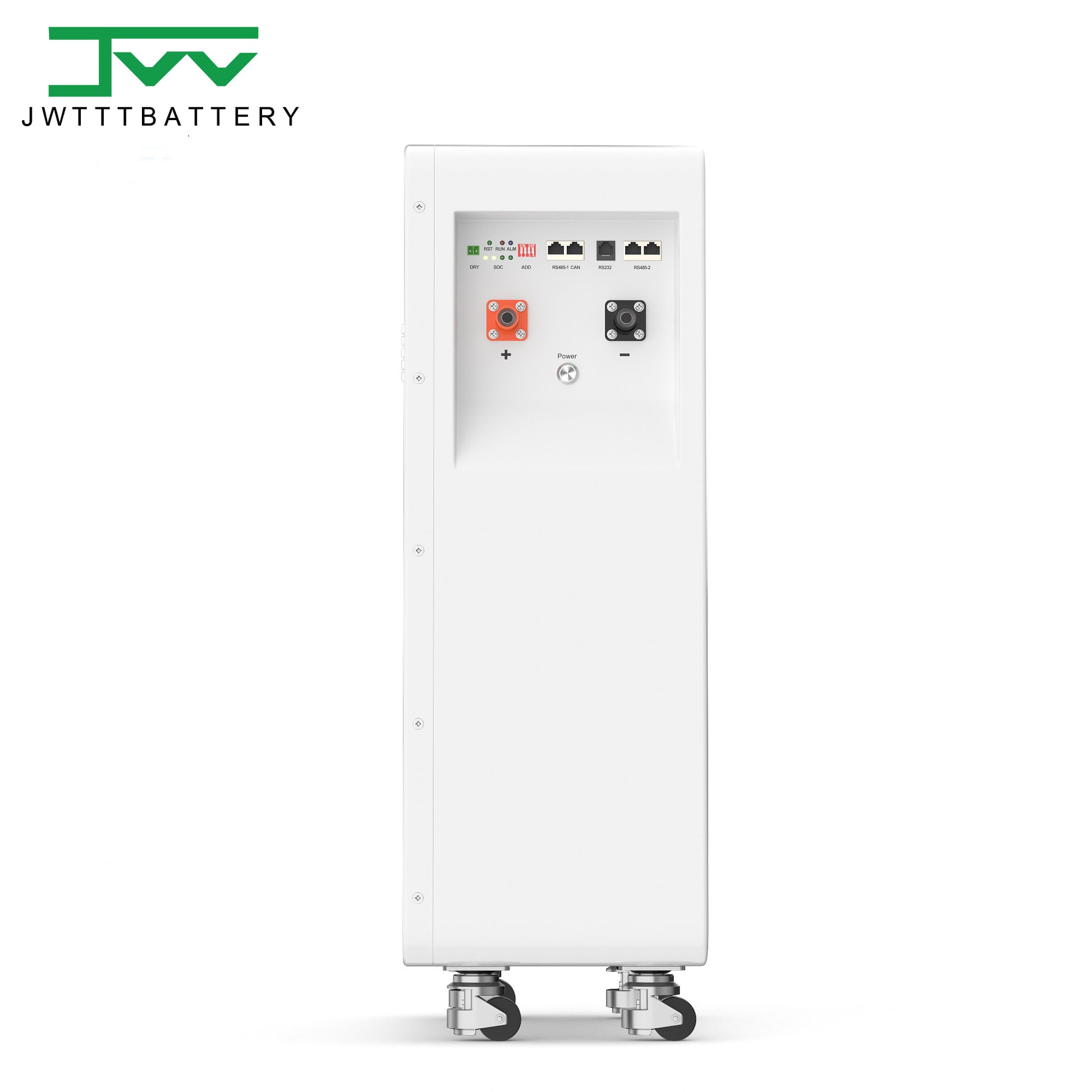

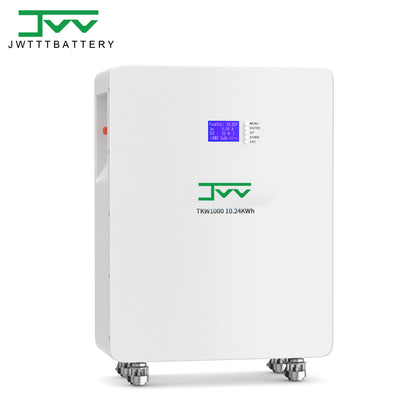

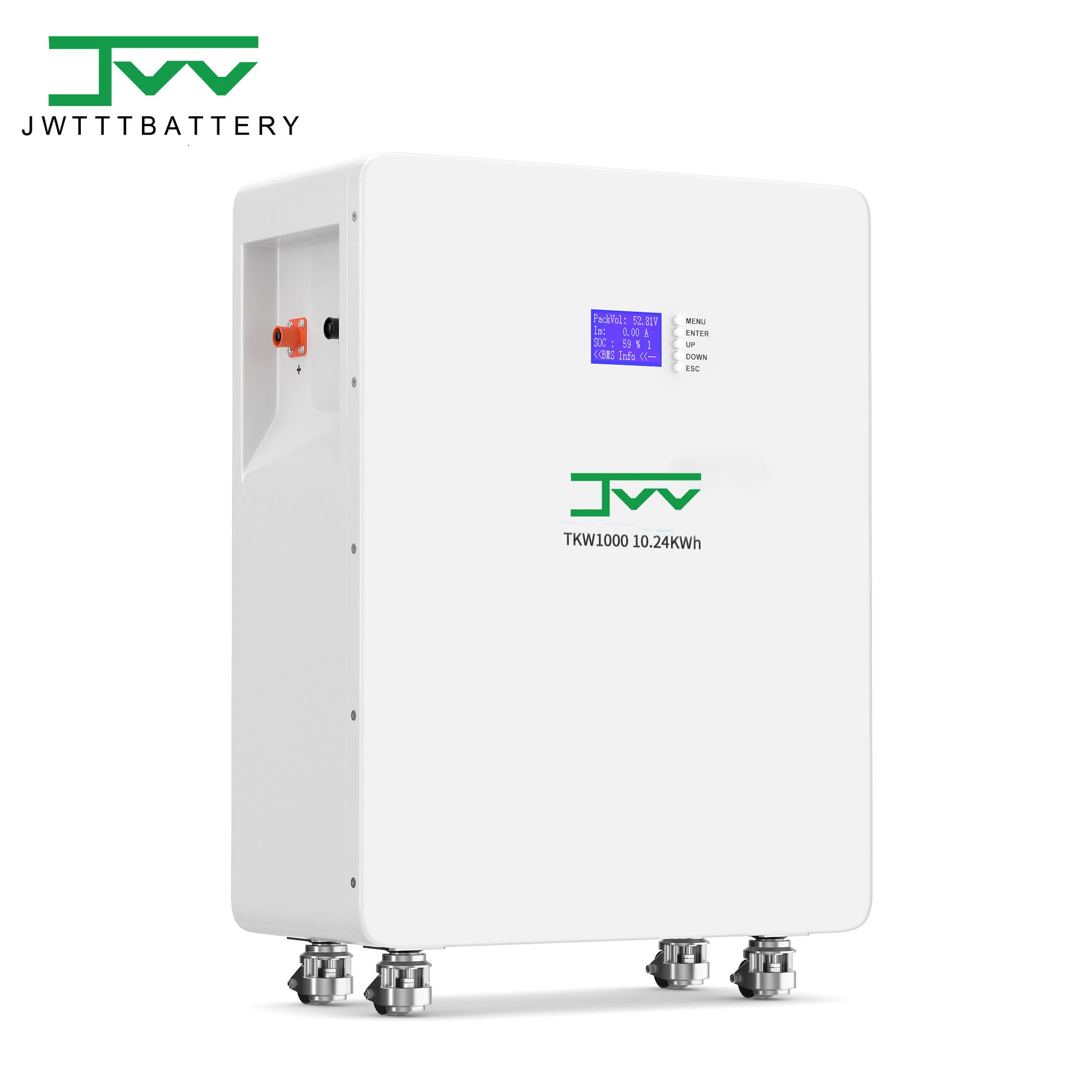

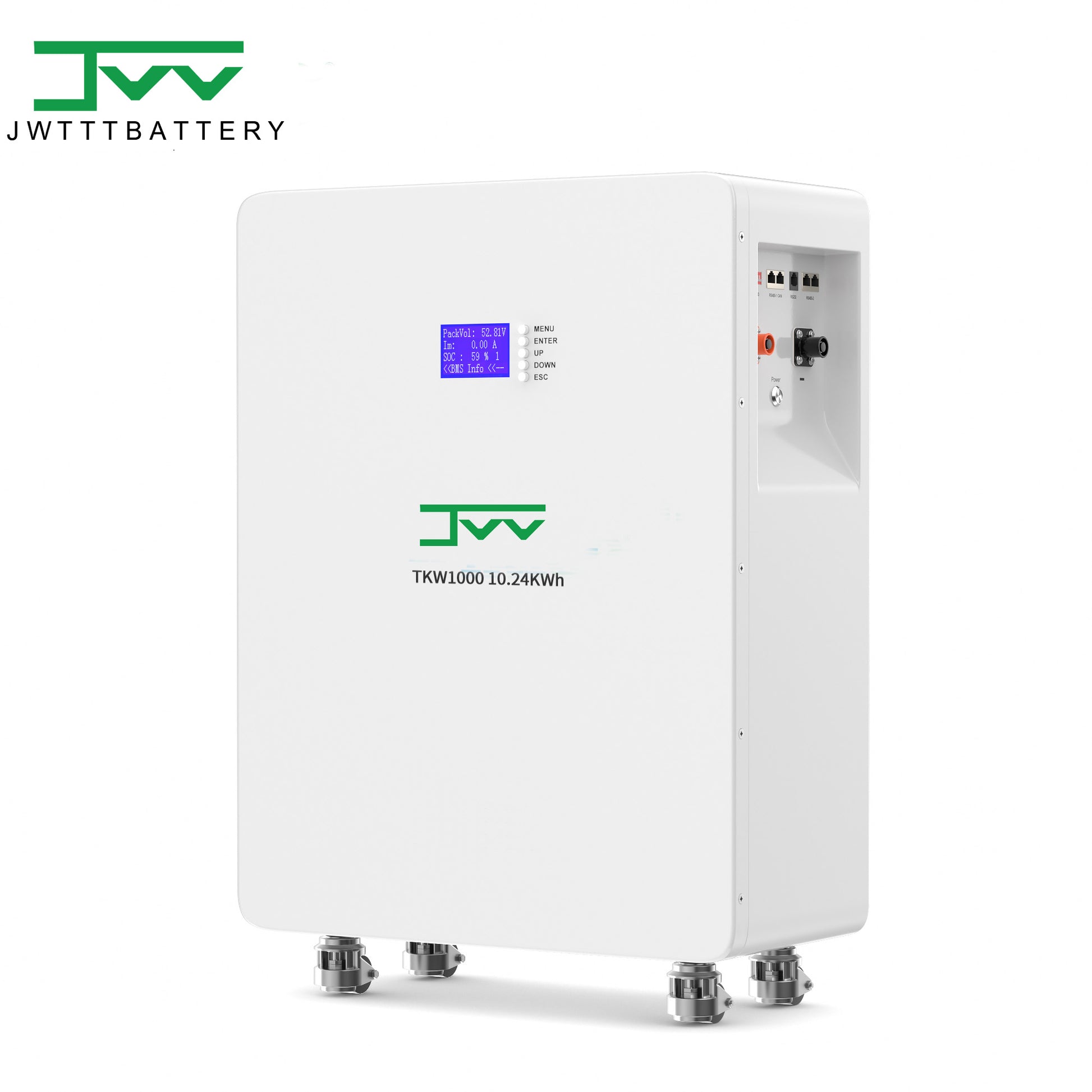

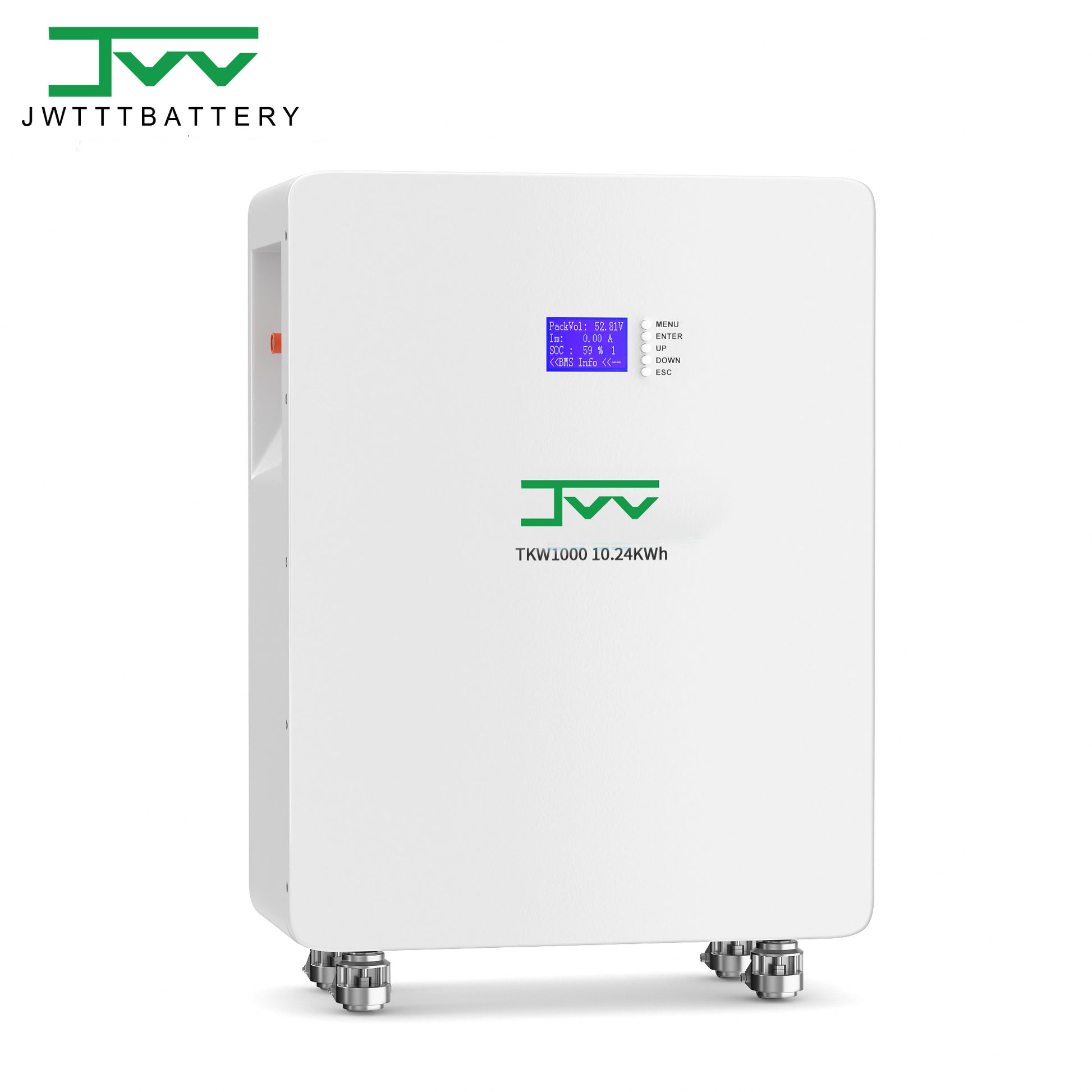

Vertical roller energy storage battery 51.2V 200AH

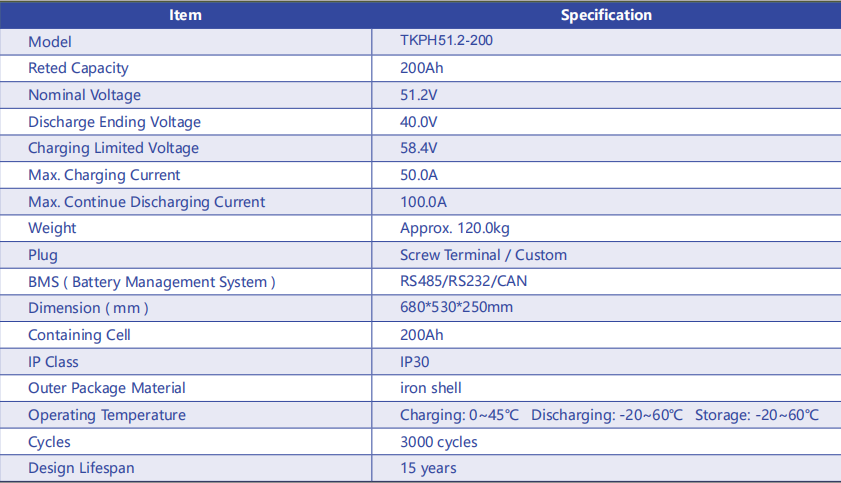

Specification
Model
TKPH51.2-200
Reted Capacity
200Ah
Nominal Voltage
51.2V
Discharge Ending Voltage
40.0V
Charging Limited Voltage
58.4V
Max.Charging Current
50.0A
Max.Continue Discharging Current
100.0A
Weight
Approx.120.0kg
Plug
Screw Terminal Custom
BMS(Battery Management System
RS485/RS232/CAN
Dimension(mm
680*530*250mm
Containing Cell
200Ah
IP Class
IP30
Outer Package Material
iron shell
Operating Temperature
Charging:0~45℃Discharging:-20~60℃Storage:-20~60℃
Cycles
3000 cycles
Design Lifespan
15 years
