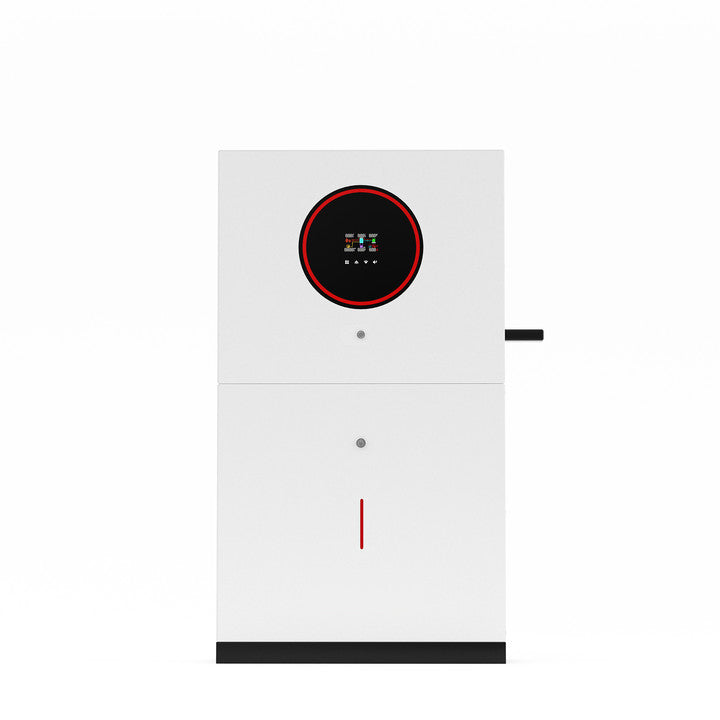

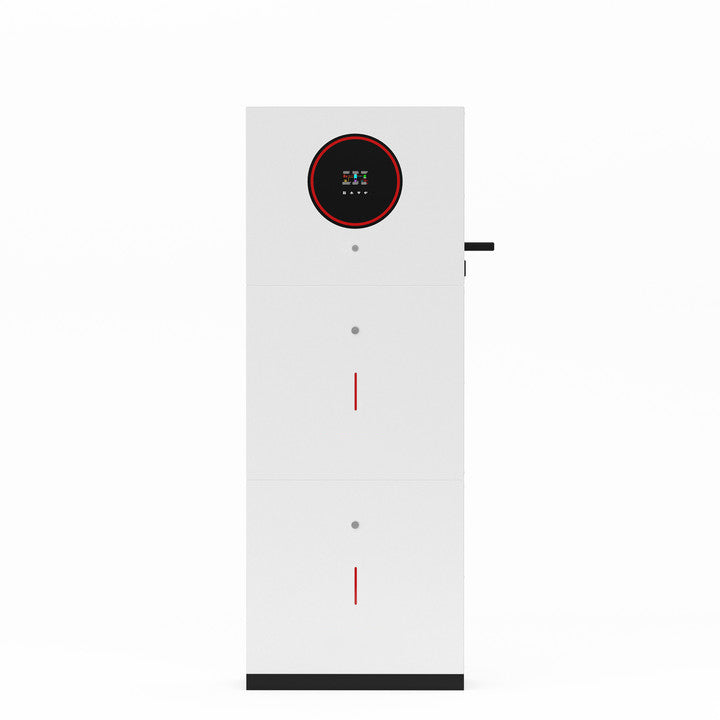

Stacked energy storage battery inverter integrated 51.2V100AH

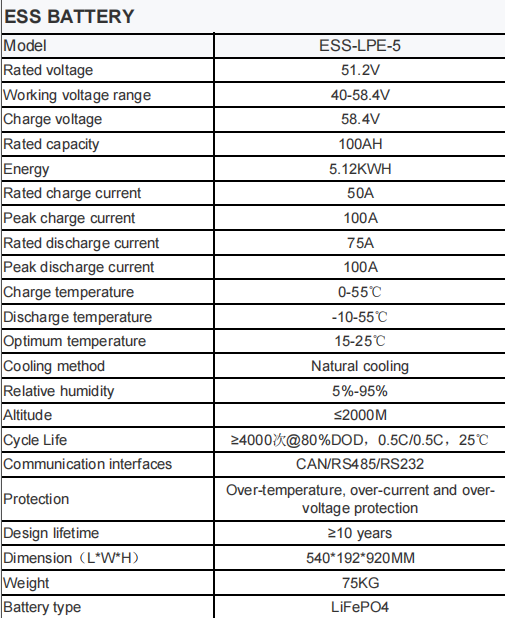

ESS BATTERY
Model
ESS-LPE-5
Rated voltage
51.2V
Working voltage range
40-58.4V
Charge voltage
58.4V
Rated capacity
100AH
Energy
5.12KWH
Rated charge current
50A
Peak charge current
100A
Rated discharge current
75A
Peak discharge current
100A
Charge temperature
0-55℃
Discharge temperature
-10-55℃
Optimum temperature
15-25℃
Cooling method
Natural cooling
Relative humidity
5%-95%
Altitude
≤2000M
Cycle Life
≥4000次@80%D0D,0.5C/0.5C,25℃
Communication interfaces
CAN/RS485/RS232
Protection
Over-temperature,over-current and over-
voltage protection
Design lifetime
≥10 years
Dimension (L*W*H)
540*192*920MM
Weight
75KG
Battery type
LiFePO4

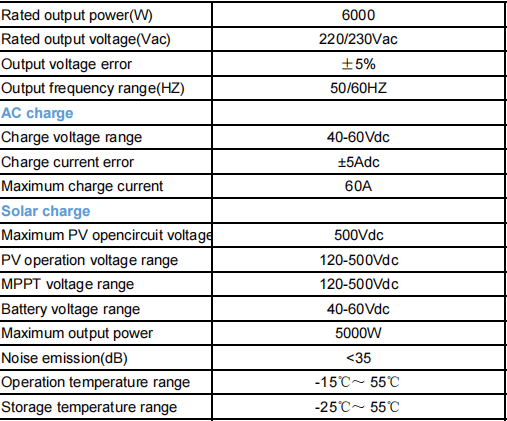

Rated output power(W)
6000
Rated output voltage(Vac)
220/230Vac
Output voltage error
±5%
Output frequency range(HZ)
50/60HZ
AC charge
Charge voltage range
40-60Vdc
Charge current error
±5Adc
Maximum charge current
60A
Solar charge
Maximum PV opencircuit voltage
500Vdc
PV operation voltage range
120-500Vdc
MPPT voltage range
120-500Vdc
Battery voltage range
40-60Vdc
Maximum output power
5000W
Noise emission(dB)
<35
Operation temperature range
-15℃-55℃
Storage temperature range
-25℃-55℃
