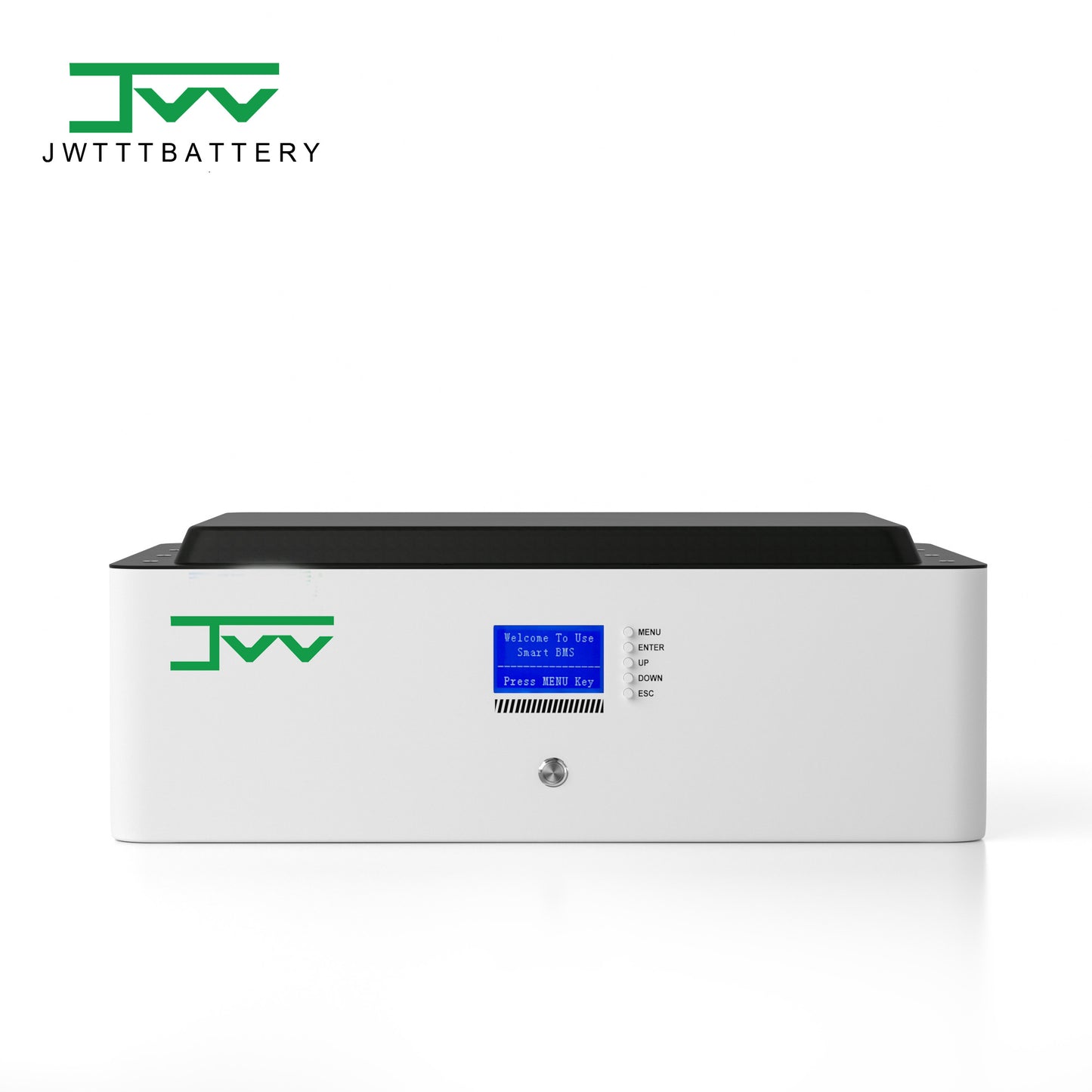

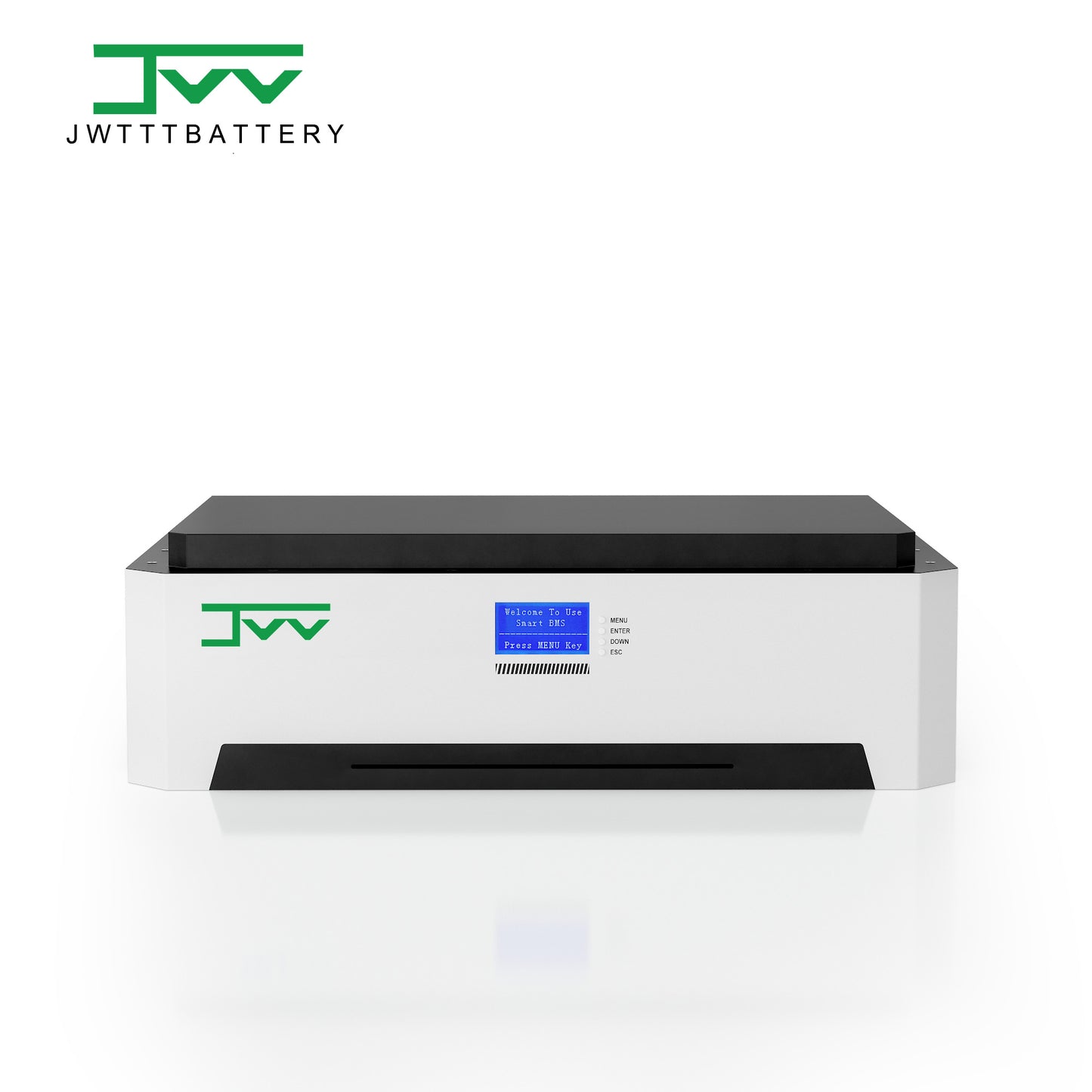

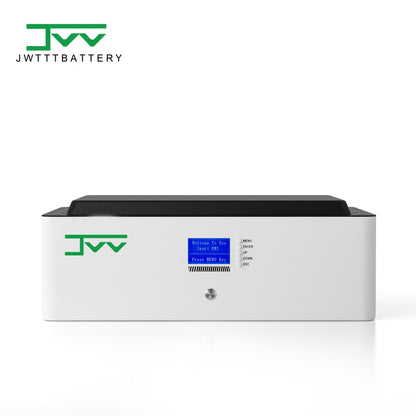

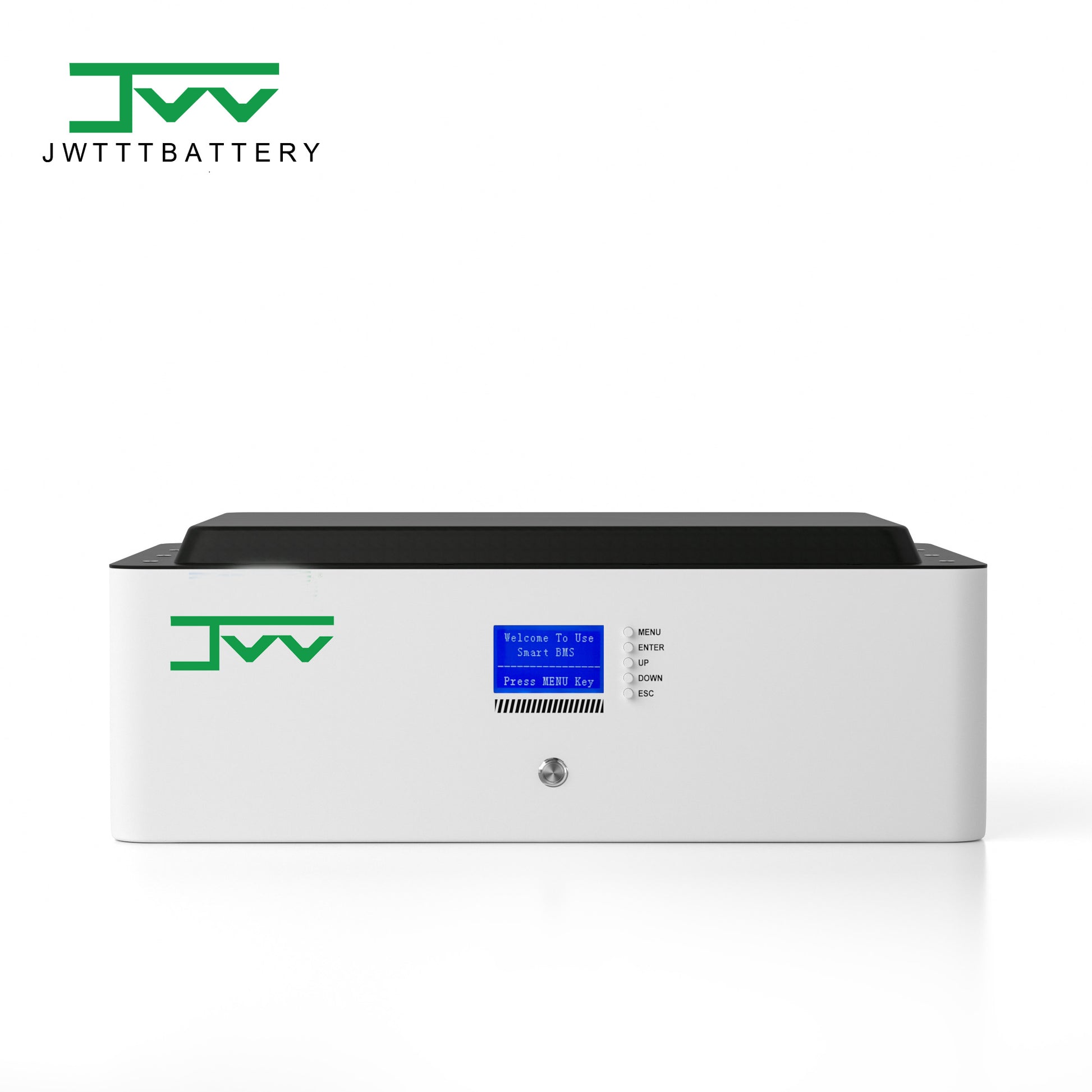

Stacked energy storage battery 51.2V100AH

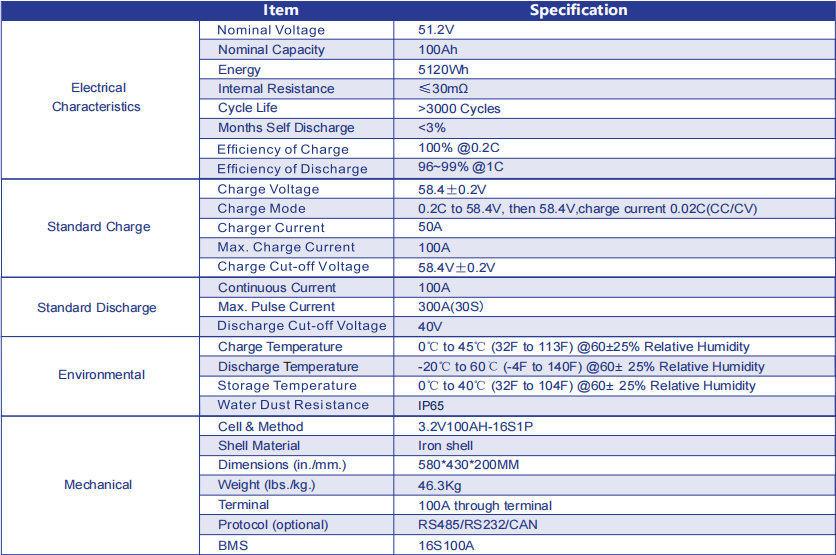

Specification
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Energy
5120h
Electrical
Intemal Resistance
≤30mQ
Characteristics
Cycle Life
>3000 Cycles
Months Self Discharge
<3%
Efficiency of Charge
100%@0.2C
Efficiency of Discharge
96-99%@1C
Charge Voltage
58.4±0.2V
Charge Mode
0.2C to 58.4V,then 58.4V,charge current 0.02C(CC/CV)
Standard Charge
Charger Current
50A
Max.Charge Current
100A
Charge Cut-off Voltage
58.4V±0.2V
Continuous Current
100A
Standard Discharge
Max.Pulse Current
300A(30S)
Discharge Cut-off Voltage
40V
Charge Temperature
0℃to45℃(32Fto113F)@60±25%Relative Humidity
Environmental
Discharge Temperature
-20℃to60C(←4Fto140F)@60±25%Relative Humidity
Storage Temperature
0℃to40℃(32Fto104F)@60±25%Relative Humidity
Water Dust Resistance
IP65
Cell Method
3.2V100AH-16S1P
Shell Material
Iron shell
Dimensions (in./mm.)
580*430*200MM
Mechanical
Weight (lbs./kg.)
46.3Kg
Terminal
100A through terminal
Protocol (optional)
RS485/RS232/CAN
BMS
16S100A
