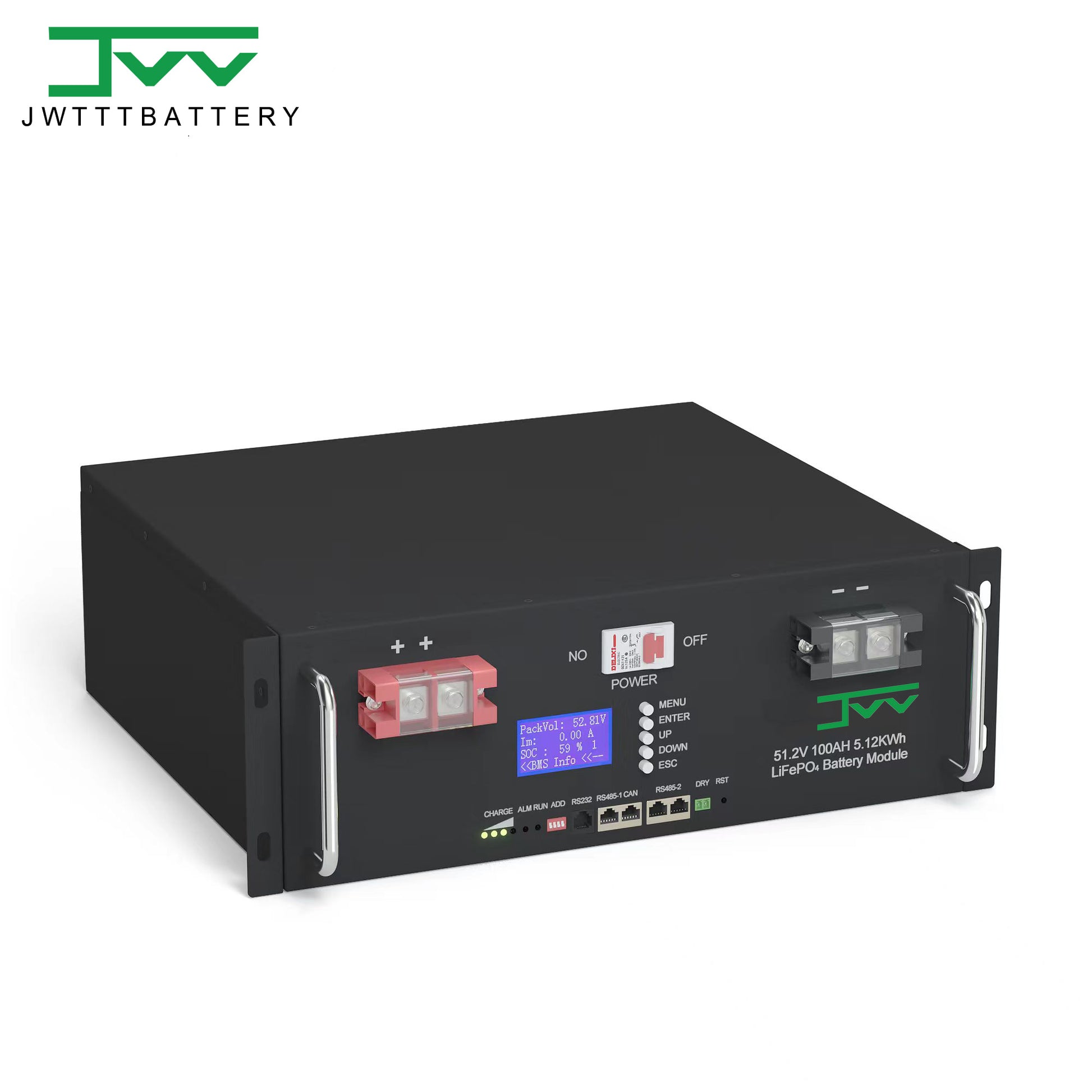

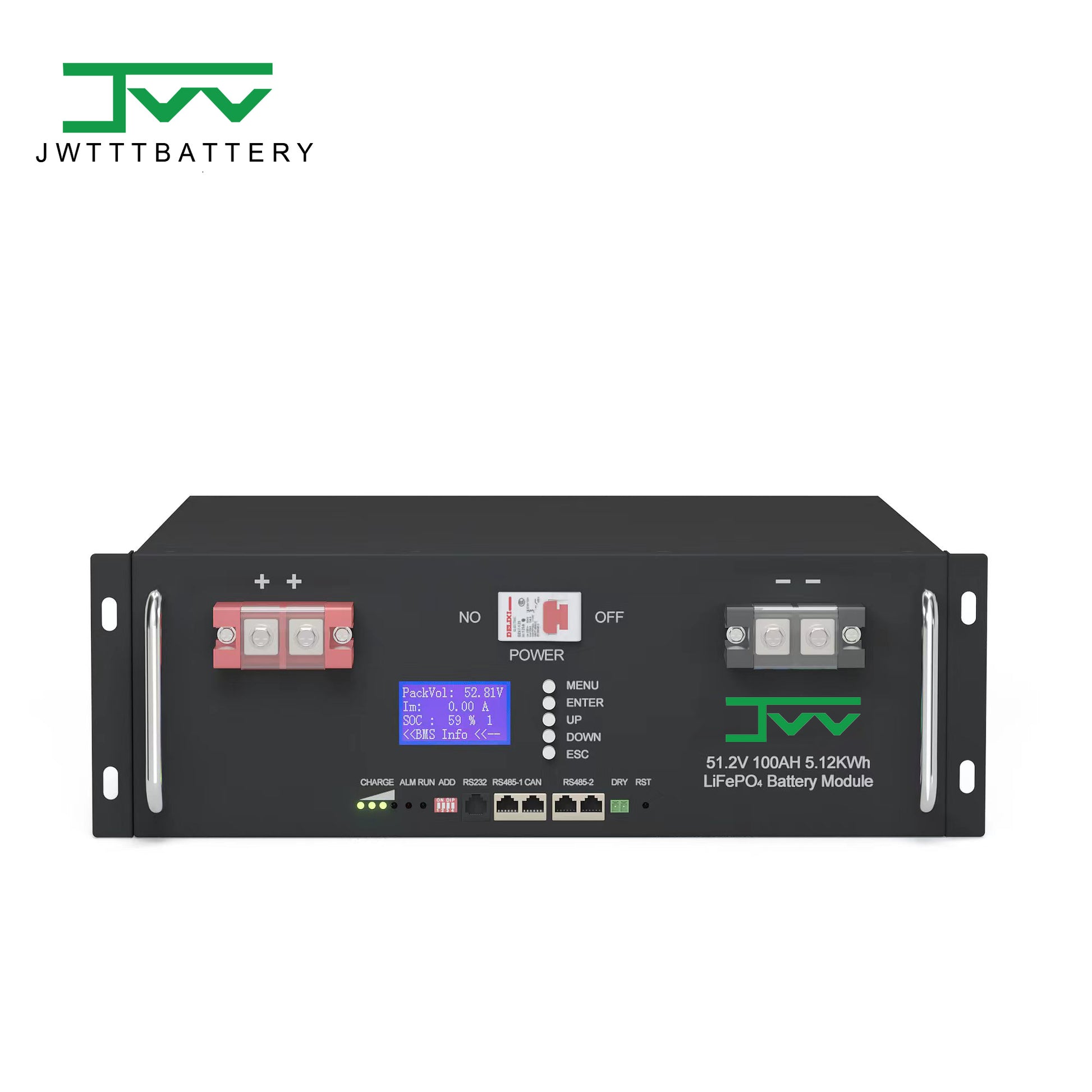

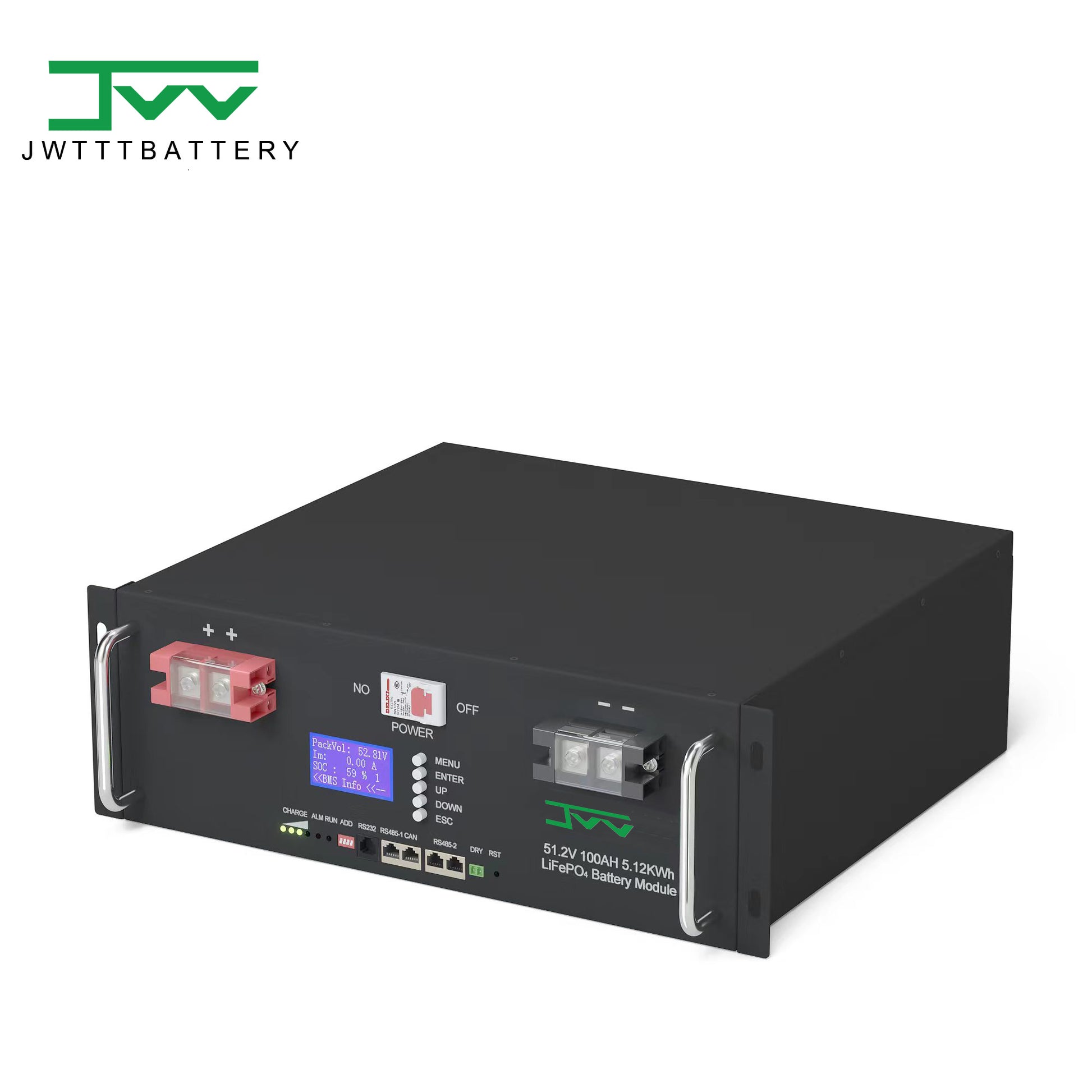

Rack mount battery 51.2V100AH

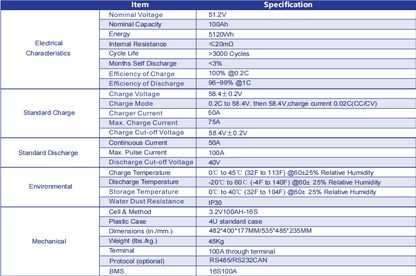

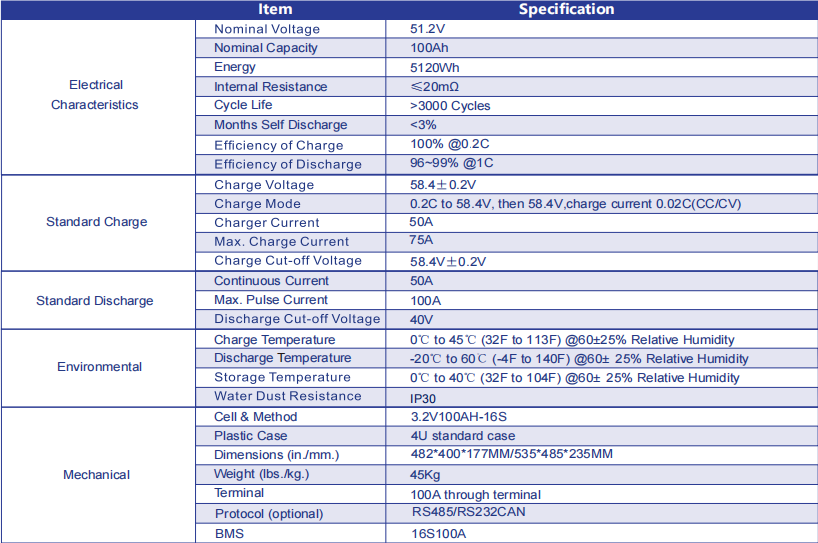

Specification
Nominal Voltage
512V
Nominal Capacity
100Ah
Energy
5120Wh
Electrical
Intemal Resistance
≤20ma
Characteristics
Cycle Life
>3000 Cycles
Months Self Discharge
<3%
Efficiency of Charge
100%@0.2C
Efficiency of Discharge
9699%@1C
Charge Voltage
58.4±0.2V
Charge Mode
0.2C to 58.4V,then 58.4V,charge current 0.02C(CC/CV)
Standard Charge
Charger Current
50A
Max.Charge Current
75A
Charge Cut-off Voltage
58.4V±0.2V
Continuous Current
50A
Standard Discharge
Max.Pulse Current
100A
Discharge Cut-off Voltage
40V
Charge Temperature
0'C to 45 C (32F to 113F)@60+25%Relative Humidity
Discharge Temperature
Environmental
-20'C to 60C (-4F to 140F)@60+25%Relative Humidity
Storage Temperature
O'C to 40C (32F to 104F)@60+25%Relative Humidity
Water Dust Resistance
1P30
Cell Method
3.2V100AH-16S
Plastic Case
4U standard case
Dimensions (in/mm.)
482*400*177MMW535*485*235MM
Mechanical
Weight (Ibs./kg.)
45Kg
Terminal
100A through terminal
Protocol (optional)
RS485/RS232CAN
BMS
16S100A
